Wall exit flue kit 1

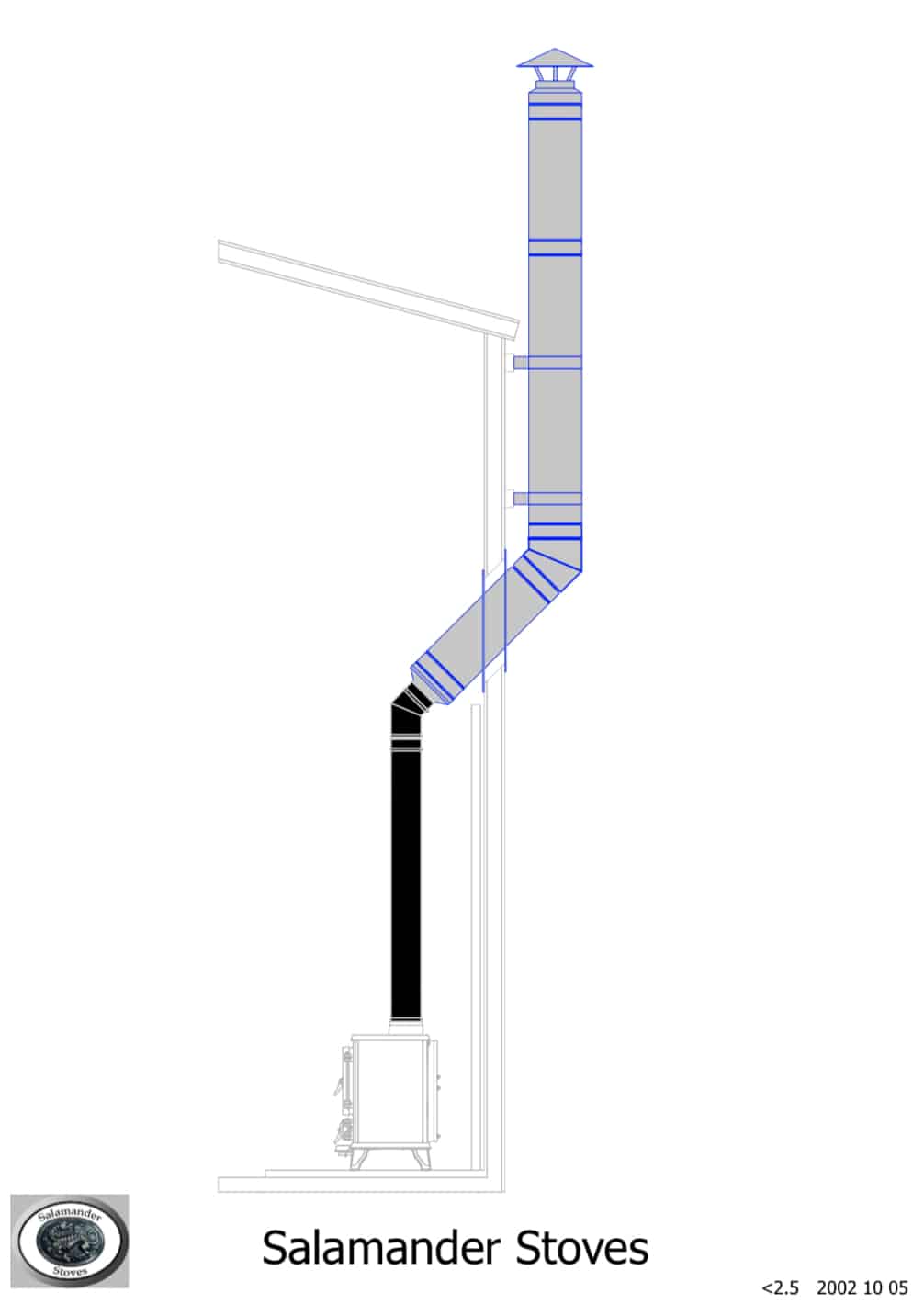

Wall Exit Kit 1 has been designed for walls that have a thickness greater than 100mm so passing through horizontally is not a possibility. This kit allows a more gradual exit through the wall using 45-degree elbows.

• 1x 1000mm of single wall flue pipe (black finish 100mm/4″ internal diameter)
• 1x 45 Degree elbow in single wall flue (black finish 100mm/4″ internal diameter)
• 1x Joint clip (to suit 100mm/4″ internal diameter SW flue)
• 1x Adaptor – single wall to twin wall flue (100mm/4″ internal diameter to 125mm/5″ internal diameter)
• 2x 45 Degree trim plates
• 2x Wall bands (to suit 125mm/5″ internal diameter TW flue)
• 1x 500mm of twin wall flue pipe (125mm/5″ internal diameter)
• 1x 45 Degree elbow in twin wall flue (125mm/5″ internal diameter)
• 1x 800mm of twin wall flue pipe (125mm/5″ internal diameter)
• 1x 500mm of twin wall flue pipe (125mm/5″ internal diameter)
• 1x Rain cap cowl (125mm/5″ internal diameter)
• 1x Cartridge of fire cement
• 1x Cartridge of heatproof silicone sealant
